Pipe Shoes

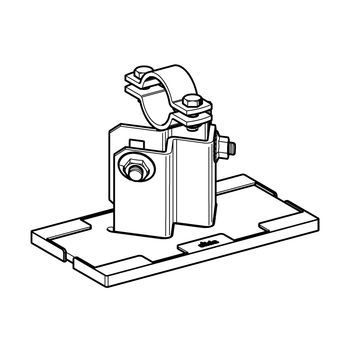

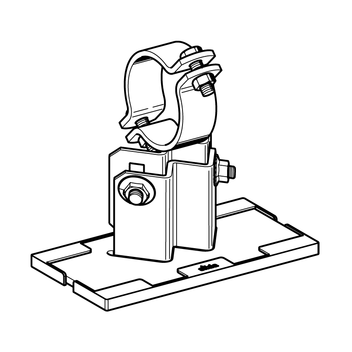

Pipe Shoe LA - HV

Application

Pipe Shoe - Single Clamp for pipes on suitable surfaces. Height-adjustable in steps of 2.5mm. When resting on steel beams, a minimum flange width of 80 mm is recommended.

Scope of delivery

Upper and lower part are bolted together allowing height adjustment. The slide plate is fixed to the lower part.

Technical Data

Type
Height H
as delivered [mm]
Height H
Range [mm]
LA - HV 90 90 88.5 ... 113.5
LA - HV 150 150 116 ... 168.5
LA - HV 200 200 171 ... 223.5

Tightening torque screw connections:

Clamping bolts
tightening torque
[Nm]
height adjustment
tightening torque
[Nm]
DN 15 - 40 40 bolts in the bar 80
DN 50 - 150 50 bolts in the bar 80

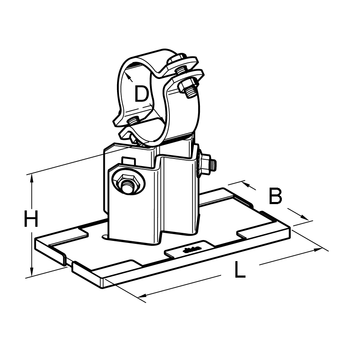

Dimensions:
Metal plate:
L = 250 mm x B = 100 mm
Slide plate incl.:
L = 256 mm x B = 105 mm

Material:
Metal plates:
Steel, HCP
Bolts, Nuts:
Steel, HCP
Slide Plate:
Polyamide 6.0, glass fibre reinforced, black
Temperature range slide plate:
-20°C to +130°C
Media temperature tf :
-20°C to +300°C (if tf > 270°C, remove slide plate)

Approvals / Conformity


Pipe Shoe - external monitoring PDF | 626.1 KB Overview "All Pipe Shoes LA - HV" PDF | 100.2 KB

Further clamping ranges listed in the attached "PDF-Overview" all pipe shoes.
Note: Pipe shoes HV 200 and outside the DN range - minimum quantity and delivery time on request.

TypeD (pipe)
[mm]
W
[kg]
Quantity
[pack]
Part
number
LA - HV 90 18-22 (DN 15) 1/2"18 - 222.81 112386
LA - HV 90 23-27 (DN 20) 3/4"23 - 272.81 112387
LA - HV 90 30-34 (DN 25) 1"30 - 342.91 110035
LA - HV 90 40-44 (DN 32) 1 1/4"40 - 442.91 110036
LA - HV 90 45-49 (DN 40) 1 1/2"45 - 493.01 110037
LA - HV 90 57-61 (DN 50) 2"57 - 613.11 110038
LA - HV 90 72-77 (DN 65) 2 1/2"72 - 773.21 110039
LA - HV 90 84-89 (DN 80) 3"84 - 893.31 110040
LA - HV 90 109-115 (DN 100) 4"109 - 1153.61 110041
LA - HV 90 134-140 (DN 125) 5"134 - 1403.71 110042
LA - HV 90 163-169 (DN 150) 6"163 - 1694.81 110043

LA - HV 150 18-22 (DN 15) 1/2"18 - 223.11 112388
LA - HV 150 23-27 (DN 20) 3/4"23 - 273.11 112389
LA - HV 150 30-34 (DN 25) 1"30 - 343.21 110044
LA - HV 150 40-44 (DN 32) 1 1/4"40 - 443.21 110045
LA - HV 150 45-49 (DN 40) 1 1/2"45 - 493.31 110046
LA - HV 150 57-61 (DN 50) 2"57 - 613.51 110047
LA - HV 150 72-77 (DN 65) 2 1/2"72 - 773.61 110048
LA - HV 150 84-89 (DN 80) 3"84 - 893.61 110049
LA - HV 150 109-115 (DN 100) 4"109 - 1153.91 110050
LA - HV 150 134-140 (DN 125) 5"134 - 1404.11 110051
LA - HV 150 163-169 (DN 150) 6"163 - 1695.11 110052

LA - HV 200 18-22 (DN 15) 1/2"18 - 223.51 112390
LA - HV 200 23-27 (DN 20) 3/4"23 - 273.51 112391
LA - HV 200 30-34 (DN 25) 1"30 - 343.51 110053
LA - HV 200 40-44 (DN 32) 1 1/4"40 - 443.61 110054
LA - HV 200 45-49 (DN 40) 1 1/2"45 - 493.61 110055
LA - HV 200 57-61 (DN 50) 2"57 - 613.81 110056
LA - HV 200 72-77 (DN 65) 2 1/2"72 - 773.91 110057
LA - HV 200 84-89 (DN 80) 3"84 - 893.91 110058
LA - HV 200 109-115 (DN 100) 4"109 - 1154.31 110059
LA - HV 200 134-140 (DN 125) 5"134 - 1404.41 110060
LA - HV 200 163-169 (DN 150) 6"163 - 1695.41 110061
