Application

Quick assembly system for attaching pipe clamps and other components to the siMetrix Profile PRO 46. It is self-retaining thanks to the shape, but can still be easily moved by hand. Easy height adjustment within the Profile PRO 46 due to 10 mm spaced grooves which allow easy shortening with the Rod Cutter PBC without sawing or re-cutting threads.

Scope of delivery

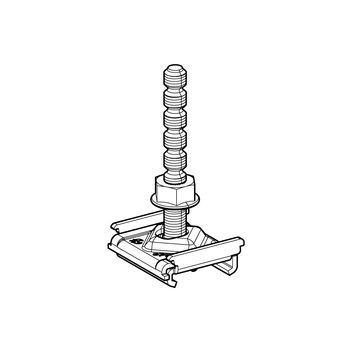

Blockset with pressix rod completely pre-assembled - types M8 x 50 and M10 x 50 with threaded rod.

Installation

Snap the Blockset onto the profile, then tighten the connecting element with a lock nut. To disassemble, loosen the lock nut and press on the shoulder (highest point) of the blockset upper part and pull it off the profile. Pressix rod secured against unscrewing.

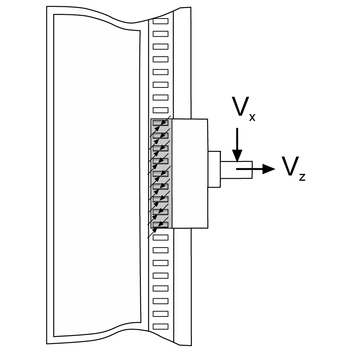

Technical Data

Type
± Vx,zul
[kN]
± Vy,zul
[kN]
- Vz,zul
[kN]
PBS 46 0,55 2,54 4,53

Tightening torque:
15 Nm
Material:
Steel, HCP

Approvals / Conformity



This product has been awarded the RAL quality mark "Pipe Supports" and is subject to continuous external monitoring according to RAL GZ-655.

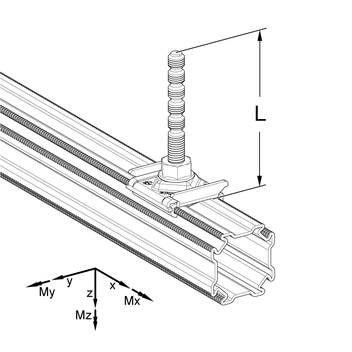

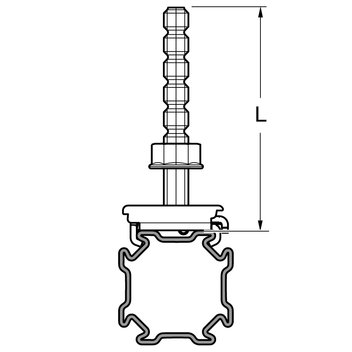

TypeL
[mm]
W
[kg]
Quantity
[pack]
Part
number
M8 x 50500.1225 803552
M8 x 90900.1325 803553
M8 x 1401400.1525 803554

M10 x 50500.1425 803555
M10 x 90900.1525 803556
M10 x 1401400.1825 803557
