End Connectors and Fastening
End Support STA F 80/30 E
![](/sixcms/media.php/443/thumbnails/A422_STA_F_80-30-80-E.TIF.57696.png)
![](/sixcms/media.php/443/thumbnails/A422_STA_F_80-30-80-E_anw01.tif.57688.png)
![](/sixcms/media.php/443/thumbnails/A422_STA_F_80-30-80-E_m.tif.57704.png)
Application
Plug-in component designed to create an endplate at the open end of a Beam Section TP F80/30 a Cantilever bracket AK F80/30.
Installation

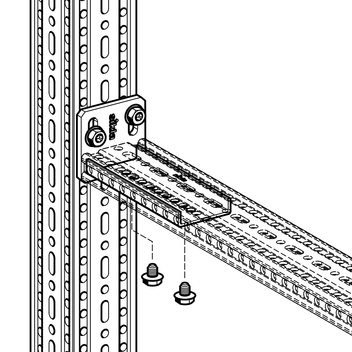

The Beam Section TP F 80/30 E connected to the End Support STA F 80/30 E has to be screwed with 2 Self Forming Screws FLS F.
Technical Data

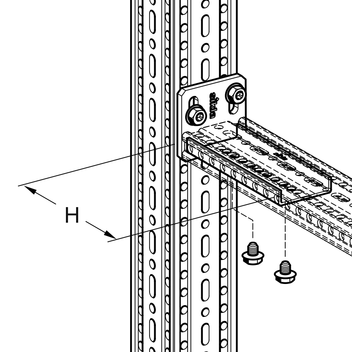

Type | Dimensions of Base plate [mm] | Slots in base plate for | H [mm] |
---|---|---|---|
STA F 80/30-80-E | 80 x 80 x 8 | M10 | 178 |
Material: | Steel, HCP |
Approvals / Conformity
CE mark (Declaration of performance see www.sikla.co.uk/service/downloads)
Declaration of performance End Support STA F PDF | 189.6 KB
