Pressix CC 41 - Channel System
Channel MS 41/52/2.5
![](/sixcms/media.php/443/thumbnails/1111_lochbild_3.2237.tif.45480.png)

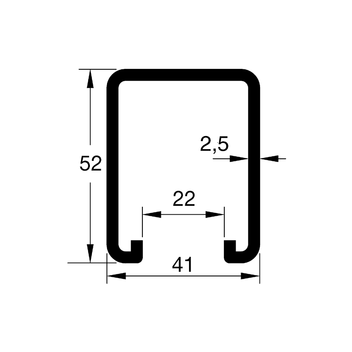

![](/sixcms/media.php/443/thumbnails/Schnitt%2041%2052-2%2C5.TIF.46566.png)

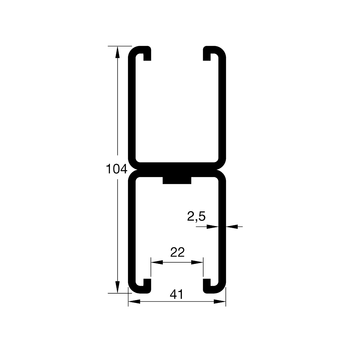

![](/sixcms/media.php/443/thumbnails/Schnitt%2041%2052%20%20D-2%2C5.TIF.46565.png)
Permissible load with centrical load application
L [cm] | 41/52/2.5 [N] | 41/52/2.5 D [N] |
---|---|---|
20 | 16011 | 49646 |
40 | 8001 | 24815 |
60 | 5330 | 16535 |
80 | 3993 | 12392 |
100 | 3198 | 9904 |
120 | 2653 | 8244 |
140 | 2269 | 7056 |
160 | 1980 | 6165 |
180 | 1748 | 5470 |
200 | 1407 | 4913 |
220 | 1153 | 4456 |
240 | 960 | 4075 |
260 | 809 | 3751 |
280 | 688 | 3473 |
300 | 590 | 3232 |
320 | 509 | 3019 |
340 | 441 | 2832 |
360 | 384 | 2595 |
380 | 335 | 2310 |
400 | 293 | 2066 |
420 | 256 | 1856 |
440 | 223 | 1672 |
460 | 195 | 1511 |
480 | 169 | 1369 |
500 | 146 | 1243 |
520 | 125 | 1130 |
540 | 107 | 1029 |
560 | 89 | 938 |
580 | 74 | 855 |
600 | 59 | 780 |
The influence of the channel slots and the channels
dead weight are taken into account in the values.
Calculations according RAL-GZ 655-C.
σperm ≤ 185 N/mm2
f ≤ L/200
