Pressix CC 41 - Channel System
Channel MS 41/21/2.0
![](/sixcms/media.php/443/thumbnails/1111_lochbild_3.2237.tif.45480.png)

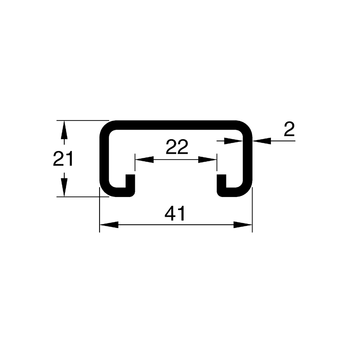

![](/sixcms/media.php/443/thumbnails/Schnitt%2041%2021-2%2C0.TIF.46568.png)

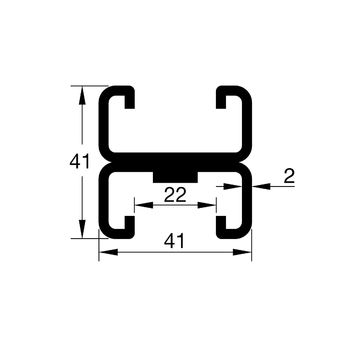

![](/sixcms/media.php/443/thumbnails/Schnitt%2041%2021%20%20D-2%2C0.TIF.46567.png)
Permissible load with centrical load application
L [cm] | 41/21/2.0 [N] | 41/21/2.0 D [N] |
---|---|---|
20 | 3049 | 7792 |
40 | 1522 | 3892 |
60 | 1013 | 2591 |
80 | 718 | 1939 |
100 | 456 | 1547 |
120 | 312 | 1285 |
140 | 225 | 1097 |
160 | 168 | 950 |
180 | 128 | 743 |
200 | 100 | 594 |
220 | 78 | 483 |
240 | 61 | 398 |
260 | 47 | 331 |
280 | 36 | 278 |
300 | 27 | 234 |
320 | 19 | 197 |
340 | 12 | 167 |
360 | 6 | 141 |
380 | 118 | |
400 | 98 | |
420 | 81 | |
440 | 66 | |
460 | 52 | |
480 | 39 | |
500 | 28 |
The influence of the channel slots and the channels
dead weight are taken into account in the values.
Calculations according RAL-GZ 655-C.
σperm ≤ 185 N/mm2
f ≤ L/200
