Pressix CC 41 - Channel System

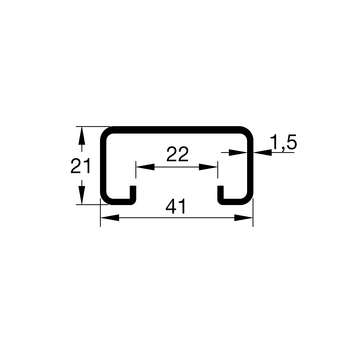

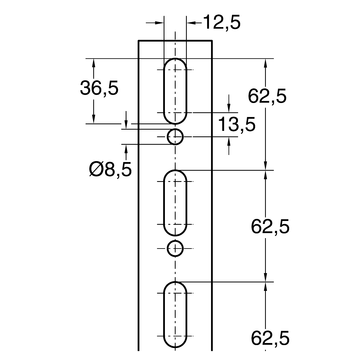

Channel MS 41/21/1.5
![](/sixcms/media.php/443/thumbnails/1111_lochbild_2.2284.tif.45502.png)
![](/sixcms/media.php/443/thumbnails/1111_ms_41_21_1_5_s01_m.2283.tif.45501.png)
Permissible load with centrical load application
L [cm] | 41/21/1.5 [N] |
---|---|
20 | 2205 |
40 | 1101 |
60 | 732 |
80 | 547 |
100 | 390 |
120 | 268 |
140 | 194 |
160 | 145 |
180 | 111 |
200 | 87 |
220 | 68 |
240 | 54 |
260 | 43 |
280 | 33 |
300 | 26 |
The influence of the channel slots and the channels
dead weight are taken into account in the values.
Calculations according RAL-GZ 655-C.
σperm ≤ 185 N/mm2
f ≤ L/200
