HDG & HCP Standard Range
Fixing Bracket MW S HCP
![](/sixcms/media.php/443/thumbnails/1326_Montagew_STyp45.2820.tif.45931.png)
![](/sixcms/media.php/443/thumbnails/1326_Montagew_STyp90.2821.tif.45932.png)
![](/sixcms/media.php/443/thumbnails/1326_Montagew_S_Mass45.2361.tif.45537.png)
![](/sixcms/media.php/443/thumbnails/1326_Montagew_S_Mass90.tif.45538.png)
Application
Designed for general mounting purposes as a direct lateral attachment link integrated in binding and bridging beams of concrete or wood, and for similar applications. It may serve as a connecting bracket for framework structures consisting of channels.
Technical Data
Type | Working load | Sprinkler System |
---|---|---|

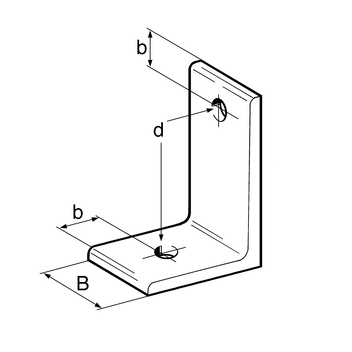

60/40/90° | 7.5 kN | ≤ DN 150 |

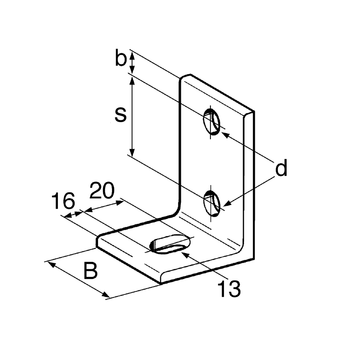

90/60/90° | 7.5 kN | ≤ DN 150 |
Material: | Steel, HCP |
