Assembly System siMetrix 46

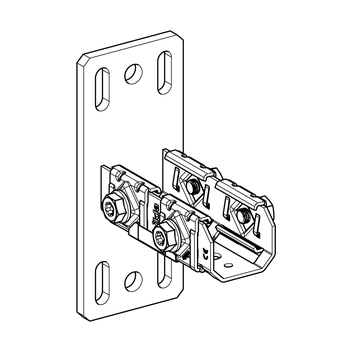

Profile Adapter MPA F

Application

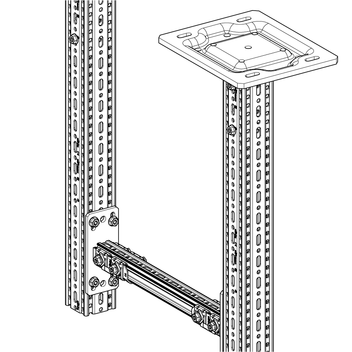

For integrating lighter constructions within the siFramo modular secondary steel system. Enables the profile transition from the siFramo Beam Section TP F 80 or 100 to the siMetrix Profile PRO 46.

Installation

To connect the profile, depress both locking sides of the profile intake, insert the profile and close it. The locking mechanism must engage in the profile grooves. The screws are then tightened.
Adapter back plate is secured o the carrier profile TP F with 4 Self Forming Screws FLS F.

Technical Data

Type
B
[mm]
H
[mm]
t
[mm]
d
[mm]
l x b
[mm]
L
[mm]
No. of Blocks
with screws
laterally

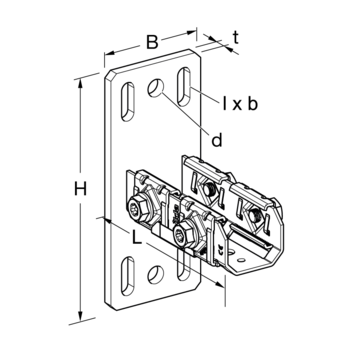

MPA F 80-46 80 190 8 14 20 x 11 137 4 x M10
MPA F 100-46 100 210 8 14 20 x 11 137 4 x M10

Type
Vx,perm.
[kN]
± Vy,perm.
[kN]
Vz,perm.
[kN]
- Vz,perm.
[kN]
My,perm.
[kNm]
- My,perm.
[kNm]
± Mz,perm.
[kNm]

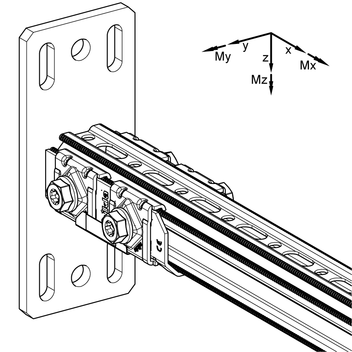

MPA 46 1,62 2,44 2,64 3,55 0,41 0,36 0,39

Configuration:
Base plate welded to profile intake
Required tool:
T50 Bit or 17 mm (AF) Socket Bit
Tightening torque:
20 Nm
Material:
Steel, HCP

TypeW
[kg]
Quantity
[pack]
Part
number
MPA F 80-461.355 802150
MPA F 100-461.715 802151
