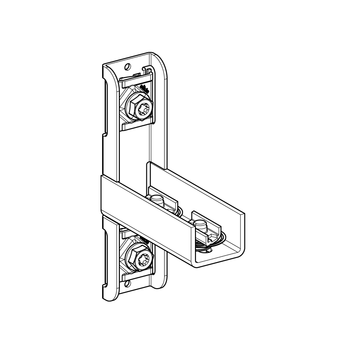

Assembly System siMetrix 46

Channel Adapter SA PRO 46

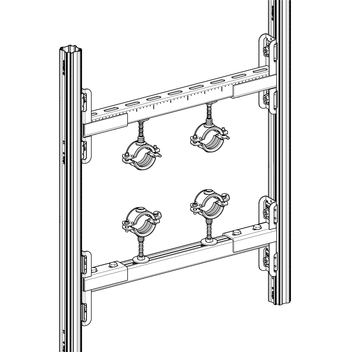

Application

For integrating lighter constructions within the siMetrix system. Enables the profile transition from the siMetrix Profile PRO 46 to the Pressix CC 41 and 27 channel systems.

Installation

Hook the base plate of the channel adapter into a groove on the side of the profile, press the lock on the opposite side and tighten the screws. Then insert the channel, press it in and tighten it.

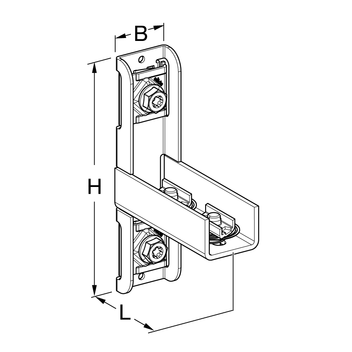

Technical Data

Type
H
[mm]
B
[mm]
L
[mm]
SA PRO 46-27 170 47 70
SA PRO 46-41 195 47 125

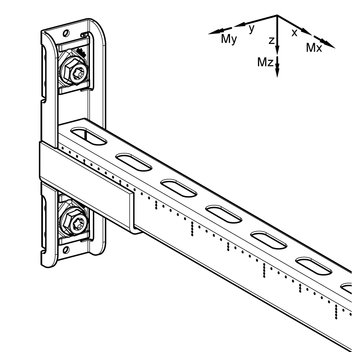

Type
Vx,perm.
[kN]
± Vy,perm.
[kN]
± Vz,perm.
[kN]
My,perm.
[kNm]
- My,perm.
[kNm]
± Mz,perm.
[kNm]
SA PRO 46-27 1,08 2,91 0,83 0,05 0,15 0,04
SA PRO 46-41 2,89 1,15 0,83 0,33 0,44 0,16

Configuration:
Base plate welded to U-section
Required tool:
T50 Bit or 17 mm (AF) Socket Bit
Tightening torque:
20 Nm
Pressix speed nuts:
SA PRO 46-27: 10 Nm
SA PRO 46-41: 40 Nm
Material:
Steel, HCP
TypeW
[kg]
Quantity
[pack]
Part
number
SA PRO 46-270.4410 803541
SA PRO 46-410.8810 803542
