Pressix CC 41 - Channel System
End Support WBD 41/41-45

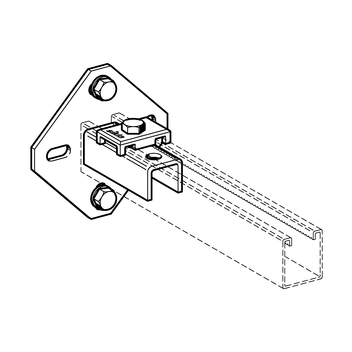

End Support WBD
End Support WBD

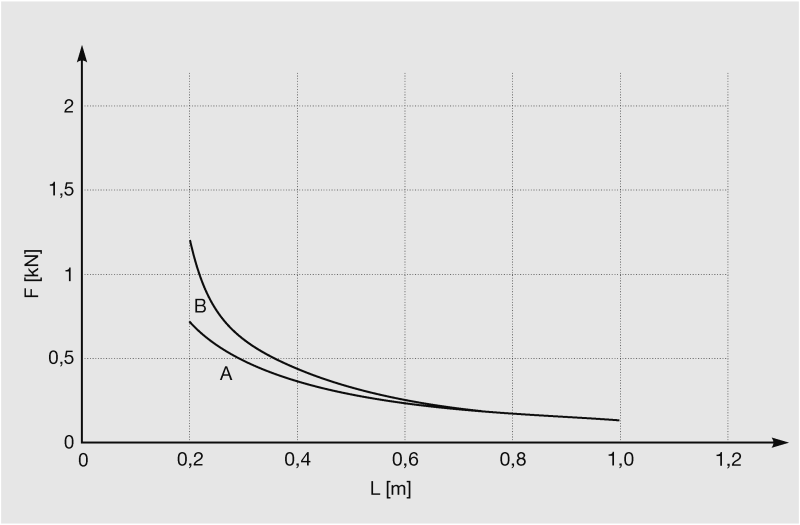

Load chart only applicable in combination with Channel 41/41/2.5 or 41/45/2.5

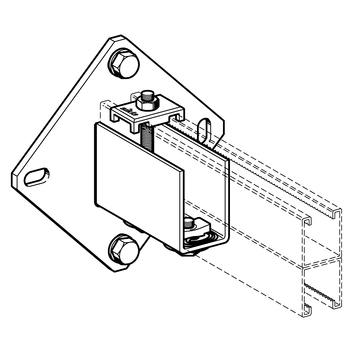

WBD-Halter 41/41-45 D

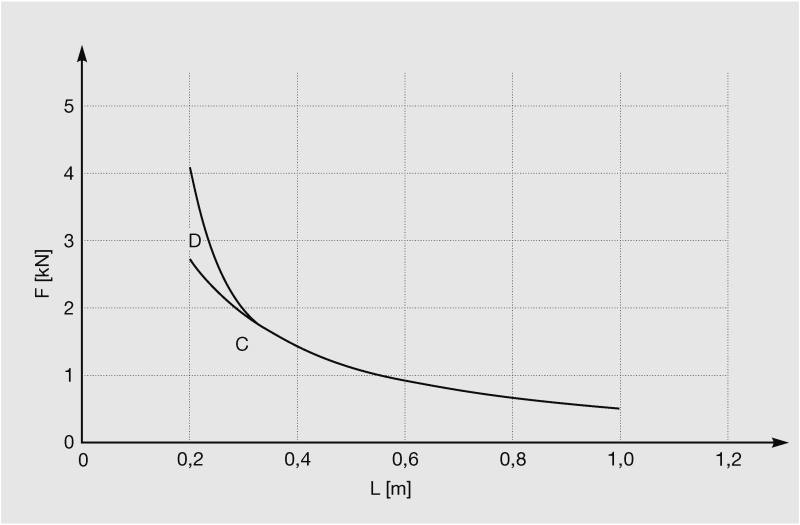

Load chart applicable in combination with Channel 41/41/2.5 D or 41/45/2.5 D
Restrictions σperm ≤ 160 N/mm2 fperm ≤ L/100 for L > 300 mm fperm ≤ 3 mm for L = 200 ... 300 mm | Anchor load classes A = 1.5 kN B = 2.5 kN C = 3.5 kN D = 6.0 kN E = 9.0 kN | ![]() |
