Assembly System siMetrix 46

Angle Connector CN 46

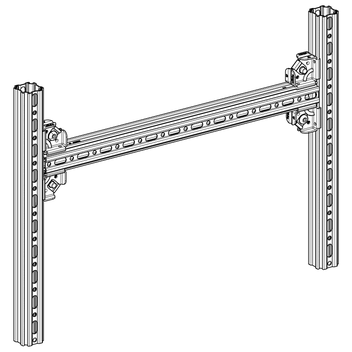

Application

For creating crossbars or cantilevers on the Profile PRO 46.

Installation

Press the connector onto both adjoining profiles and secure by tightening the screw.
Depending on the load, one or two brackets can be used per connection. For cantilevers, connectors must always be used in pairs.

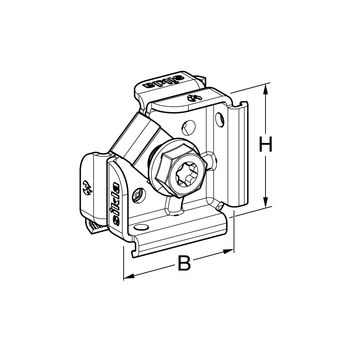

Technical Data

Type
H
[mm]
B
[mm]
Screw
CN 46 50 50 M10

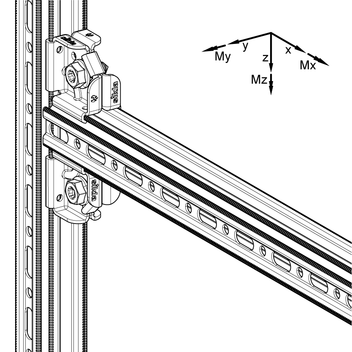

Type
Vx,perm.
[kN]
± Vy,perm.
[kN]
± Vz,perm.
[kN]
My,perm.
[kNm]
- My,perm.
[kNm]
± Mz,perm.
[kNm]
CN 46 (one-sided) 0,72 0,83 0,72 0,12 0,09 0,02
CN 46 (in pairs) 1,22 2,62 1,49 0,22 0,22 0,09

Required tool:
T50 Bit or 17 mm (AF) Socket Bit
Tightening torque:
30 Nm
Material:
Steel, HCP

TypeW
[kg]
Quantity
[pack]
Part
number
CN 460.1925 803545
