Support Bracket WK 725/400 | Sikla

Support Bracket WK 725/400

725/400

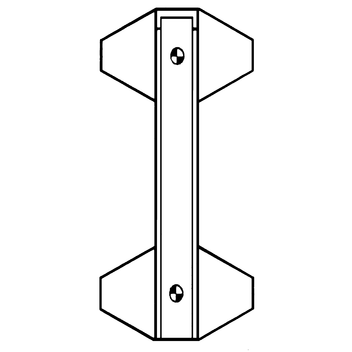

Anchor Arrangement 1

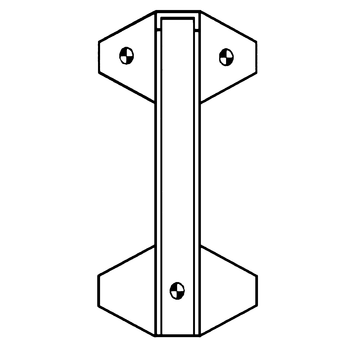

Anchor Arrangement 2

Product as PDF file

Support Bracket WK
Support Bracket WK

Bore for Tie Rod: ø 11

σ_perm ≤ 160 N/mm²

Anchor load classes [kN]

Figure	Arrangement 1	Arrangement 2	f_max
A	2 x 1.5 -	- -	L/3000
B	1 x 3.5 1 x 1.5	3 x 1.5 -	L/2000
C	1 x 6.0 1 x 2.5	2 x 3.5 1 x 1.5	L/1000
D	1 x 9.0 1 x 3.5	2 x 6.0 1 x 2.5	L/900
E	1 x 13.0 1 x 3.5	2 x 9.0 1 x 3.5	L/700
F	- -	2 x 13.0 1 x 6.0	L/500
