Sikla Modular Steel and Pipe Supports

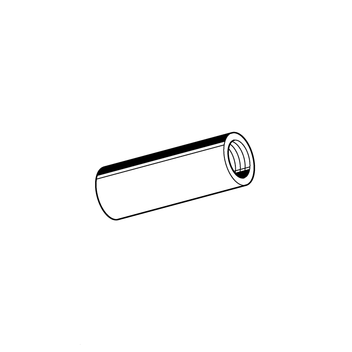

Adapter AD f/f

1333

Additional connection options for all Sikla Pipe Clamps equipped with 3G triple thread nut, fixed points and threaded tubes.

Material:
Form A:	Steel, electro-galvanised
Form B:	Malleable cast iron, electro-galvanised

Type	Form	Length [mm]	A/F [mm]	W [kg]	Quantity [pack]	Part number
M16/M10	A	35	19	0.05	50	106740
M16/M12	A	35	19	0.04	50	124665
M16/M16	A	30	19	0.03	50	106290
1/2"/M16	A	40	24	0.07	25	124656
3/4"/M10	A	35	32	0.15	10	105651
3/4"/M12	A	35	32	0.16	10	105749
3/4"/M16	A	35	32	0.14	10	105660

M16/3/4"	C	28	-	0.09	25	157931
